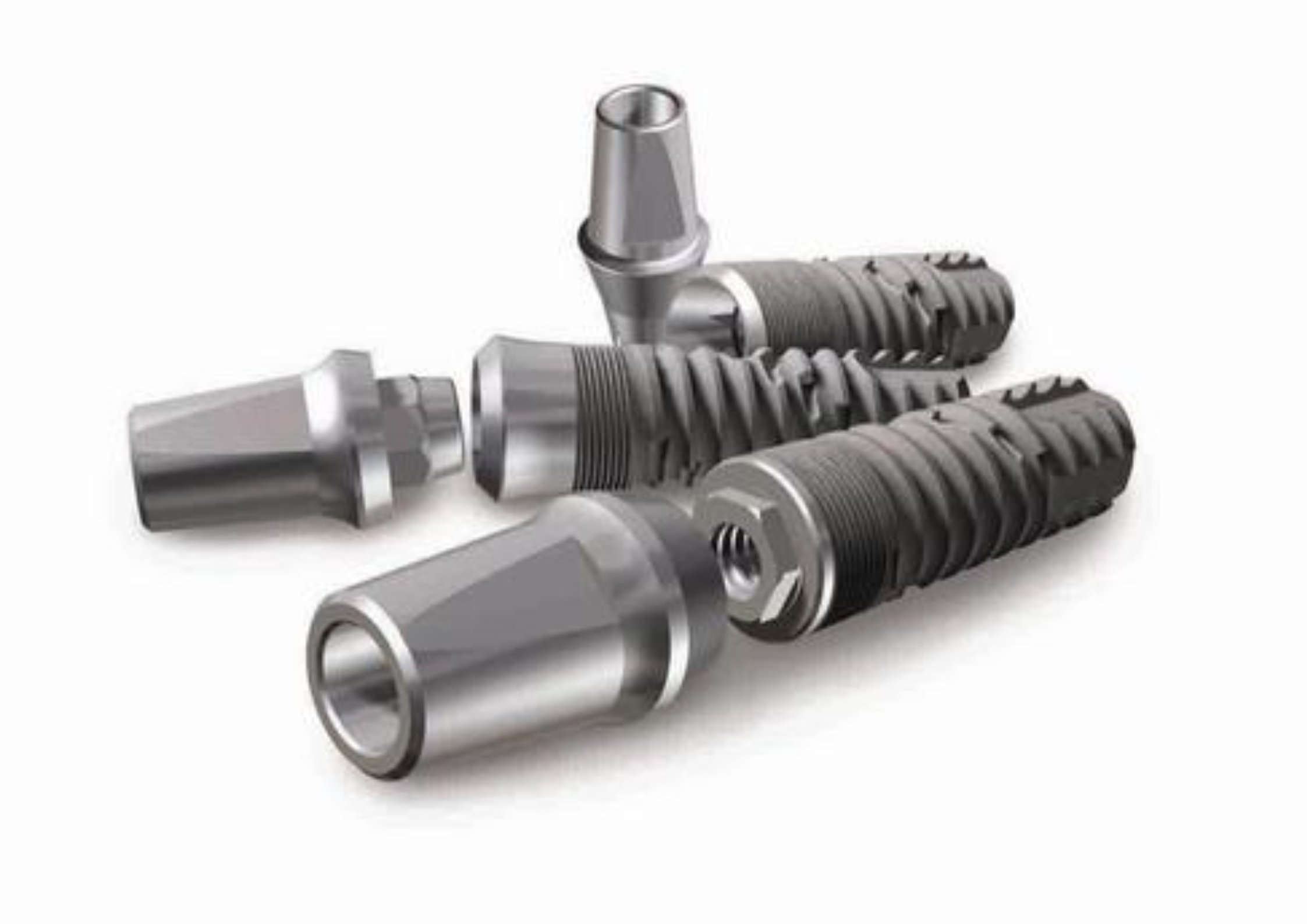

Refirm Dental Implant
Made from high strength medical grade Titanium alloy, the novel design of Refirm implants went through a long and rigorous design iteration process.
Titanium Grade 23
- Progressively Engaging Thread Design
- hape: Hybrid
- Easy Implant Pick and Convey to the Site
- Surface Characterization
- Platform Switched
- Abutment-Implant Connection Conical Hex
- Variety and Versatility Along with Minimum Inventory
- Clinically Proven Performance

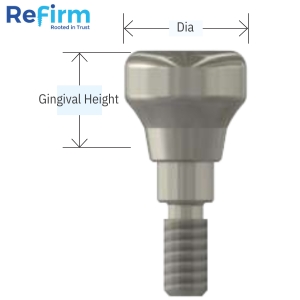

Abutment
| Gingiva Height (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
|---|---|---|---|---|---|
| 3.8 | 4.2 | 4.5 | 5.2 | 5.7 | |
| 1.2 | 11R-AS-XR019 | 11R-AS-XR017 | 11R-AS-XR018 | 11R-AS-XR022 | 11R-AS-XR004 |
| 2.2 | 11R-AS-XR020 | 11R-AS-XR001 | 11R-AS-XR002 | 11R-AS-XR003 | 11R-AS-XR009 |
| 3.0 | 11R-AS-XR016 | 11R-AS-XR006 | 11R-AS-XR007 | 11R-AS-XR008 | 11R-AS-XR014 |
| 4.0 | 11R-AS-XR021 | 11R-AS-XR011 | 11R-AS-XR012 | 11R-AS-XR013 |

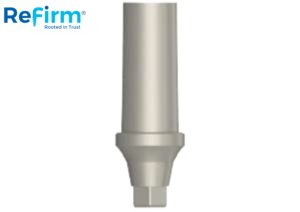

Straight Abutment
| Gingival Height (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) | ||
|---|---|---|---|---|---|---|
| 3.8 | 4.2 | 4.5 | 5.2 | |||
| 2.2 | 11R-AH-XR030 | 11R-AH-XR001 | 11R-AH-XR004 | 11R-AH-XR007 | ||
| 3.0 | 11R-AH-XR031 | 11R-AH-XR002 | 11R-AH-XR005 | 11R-AH-XR008 | ||
| 4.0 | 11R-AH-XR032 | 11R-AH-XR003 | 11R-AH-XR006 | 11R-AH-XR009 | ||
| 5.0 | 11R-AH-XR016 | 11R-AH-XR018 | 11R-AH-XR020 | |||
| 6.0 | 11R-AH-XR017 | 11R-AH-XR019 | 11R-AH-XR021 |

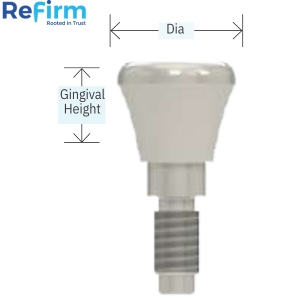

Healing Abutment/Gingival Former
| Gingival Height (mm) | Diameter (mm) | Diameter (mm) | Diameter (mm) |
|---|---|---|---|
| 4.2 | 4.5 | 5.2 | |
| 3.0 | 11R-AH-XR027 | 11R-AH-XR025 | 11R-AH-XR029 |
| 4.0 | 11R-AH-XR028 |
Healing Abutment / Gingival Former - Sub Crestal
Component
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 4.5 | |
| 2.2 | 11R-MS-XR004 |
| 3.0 | 11R-MS-XR005 |
| 4.0 | 11R-MS-XR006 |

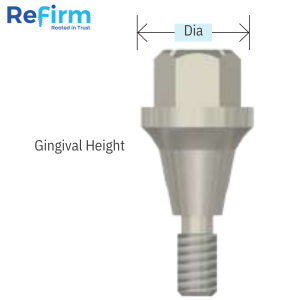

Straight Multi-UNIT
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 5.2 | |
| 2.5 | 11R-MA-XR011 |
| 3.5 | 11R-MA-XR015 |
| 4.5 | 11R-MA-XR012 |
| 5.5 | 11R-MA-XR016 |

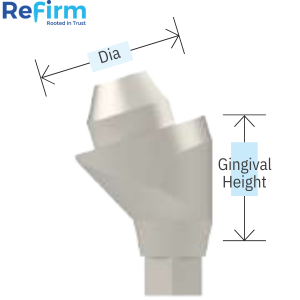

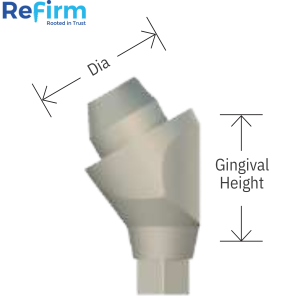

17 degree Angular Multi-UNIT
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 5.2 | |
| 3.5 | 11R-MA-XR017 |
| 4.5 | 11R-MA-XR014 |
| 5.5 | 11R-MA-XR018 |

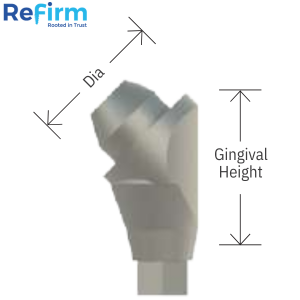

30° Angular Multi-Unit
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 5.2 | |
| 5.5 | 11R-MA-XR019 |
| 6.5 | 11R-MA-XR020 |

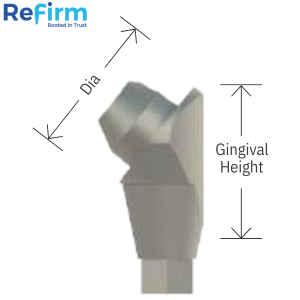

45° Angular Multi-Unit
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 5.2 | |
| 4.5 | 11R-MA-XR021 |
| 5.5 | 11R-MA-XR022 |
| 6.5 | 11R-MA-XR023 |

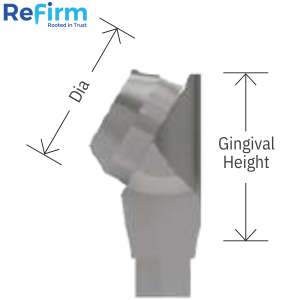

52° Angular Multi-Unit
| Gingival Height (mm) | Diameter (mm) |
|---|---|
| 5.5 | |
| 6.5 | 11R-MA-XR024 |
60° Angular Multi-Unit
Prosthetic
Multi-Unit Prosthetic Screw
Product Code : 11R-SL-MR001
Multi-Unit Abutment Screw
Product Code : 11R-SL-MR002
| Multi-Unit Abutment | Dia (mm) | Product Code |
|---|---|---|
| For Straight MU, 17°, 30°, 45°, 52° MU | Ø 4.5 / Ø 5.2 | 11R-LA-XR002 or 11R-DG-XR011 |
| For 60° Multi-Unit | Ø 5.5 | 11R-LA-XR003 or 11R-DG-XR012 |

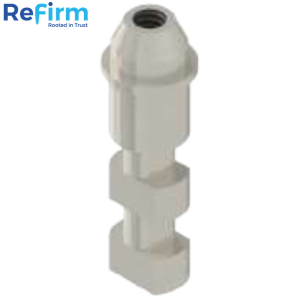

Multi-Unit Analog
| Multi-Unit Abutment | Dia (mm) | MU Impression Coping Open Tray | MU Impression Coping Close Tray |
|---|---|---|---|
| Product Code | Product Code | ||
| For Straight MU, 17°, 30°, 45°, 52° MU | Ø 4.5/ Ø 5.2 | 11R-LC-XR002 | 11R-LC-XR004 |
| For Straight MU, 17°, 30°, 45°, 52° MU | Ø 5.2 | 11R-LC-XR002 | 11R-LC-XR004 |
| For 60° Multi-Unit | Ø 5.5 | 11R-LC-XR005 |

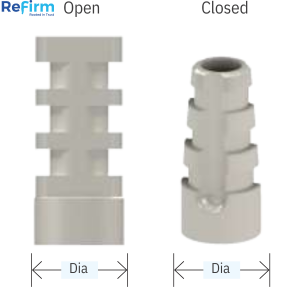

Multi-Unit (MU) Impression Coping
MU - Impression Coping Screw Open Tray
Product Code : 11R-LC-S003
MU - Impression Coping Screw Open Tray
Product Code : 11R-LC-S004

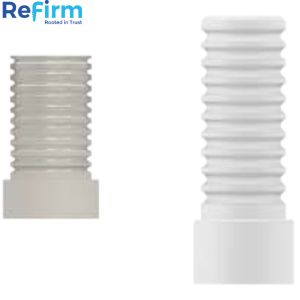

| For Straight MU | Diameter mm) | Multi-unit Ti Cylinder | Multi-unit Fully Castable Cylinder |
|---|---|---|---|
| For Straight MU | Ø 4.5/Ø 5.2 | 11R-AL-XR001/11R-AL-XR015 | 11R-AL-XR008/11R-AL-XR016 |
| For 17°, 30°, 45°, 52° MU | Ø 5.2 | 11R-AL-XR015 | 1R-AL-XR016 |
| For 60° Multi-Unit | Ø 5.5 | 11R-AL-XR002 | 11R-AL-XR013 |
