AB – Dent

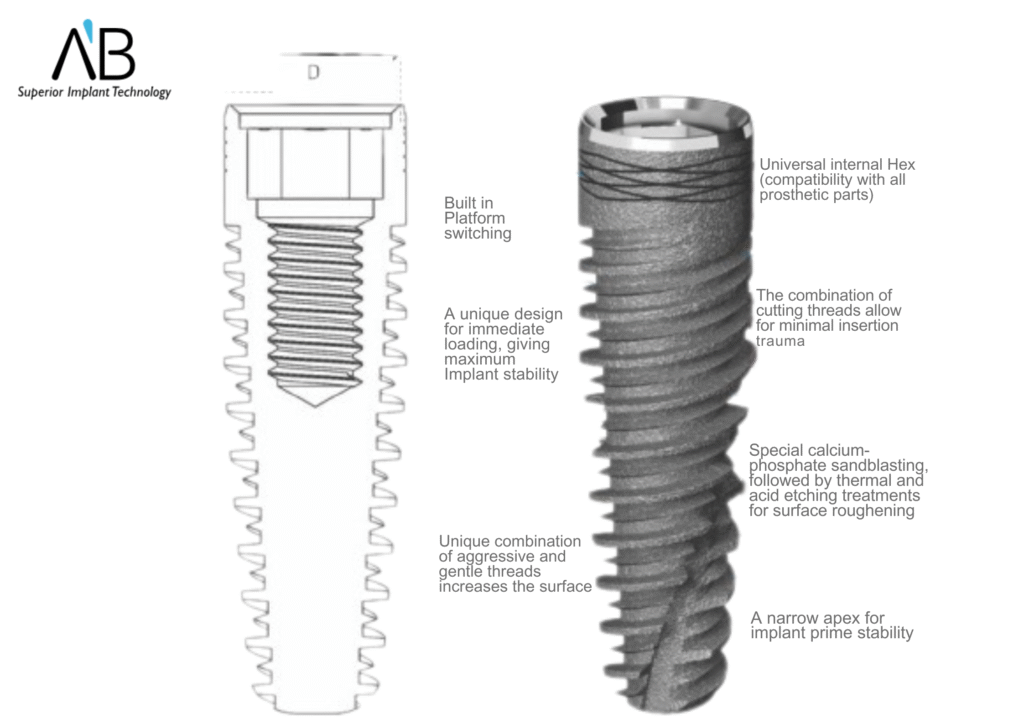

AB I55 TAPERED IMPLANT

  • A unique design for immediate loading gives maximum implant stability.
  • A unique combination of aggressive and gentle threads increases the surface area, facilitating the osseointegration process.
  • A narrow apex allows implant prime stability.
  • The combination of cutting threads allows for minimal insertion trauma.
  • Universal internal hex (compatibility with all prosthetic parts).
  • Built-in platform switching.
  • The restoration platform is Standard for all diameters, including Ø4.2 and above.
  • All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.
CAT no.D (mm)PlatformL (mm)Tube Top Cap ColorsWith/Without Implant Carrier
I553Narrow10, 11.5, 13, 16WhiteBoth
I553.3Narrow10, 11.5, 13, 16RedBoth
I553.75Standard8, 10, 11.5, 13, 16, 18BlueBoth
I554.2Standard8, 10, 11.5, 13, 16, 18GreenBoth
I554.5Standard6, 8, 10, 11.5, 13, 16,BlackBoth
I555Standard6, 8, 10, 11.5, 13, 16WhiteBoth

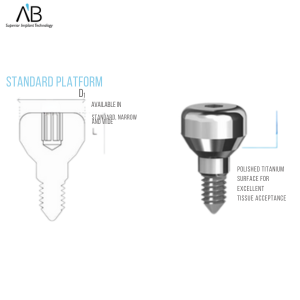

Standard Platform

P0P0NP0W
Titanium Healing CapNarrow Titanium Healing CapWide Titanium Healing Cap
P0-3.75,0.5P0N-3.75,3P0W-3.75,2
P0-3.75,2P0N-3.75,4P0W-3.75,3
P0-3.75,3P0N-3.75,5P0W-3.75,4
P0-3.75,4P0N-3.75,6P0W-3.75,5
P0-3.75,5P0N-3.75,7P0W-3.75,6
P0-3.75,6
P0-3.75,7

P0 Titanium Healing Cap

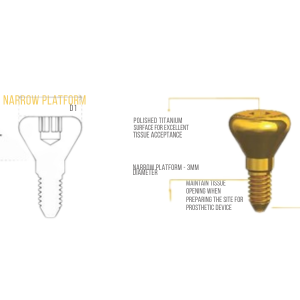

Narrow Platform

P0
Titanium Healing Cap
PO-3,2
PO-3,3
PO-3,4
PO-3,5
PO-3,7

P0 Titanium Healing Cap

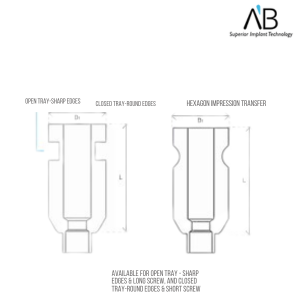

Standard

D2D20D2ND2NO
Impression Transfer for Closed TrayImpression Transfer for Open TrayNarrow Impression Transfer for Closed TrayNarrow Impression Transfer for Open Tray
D2-3.75,9D20-3.75,9D2N-3.75,9D2NO-3.75,15
D2-3.75,15D20-3.75,15

D2 Impression Transfer

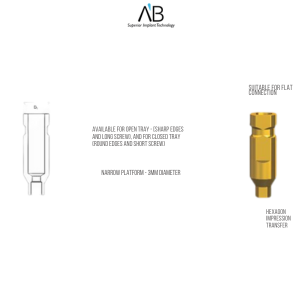

Narrow

D2D20
Narrow Impression Transfer for Closed TrayNarrow Impression Transfer for Open Tray
D2-3,9D20-3.15

D2 Impression Transfer

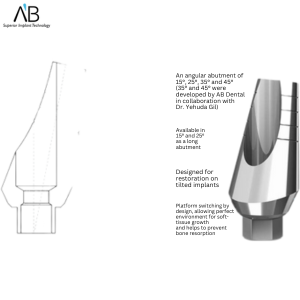

Standard Platform

P4P4-stP4 - LP4 - NP4 - 5
Angular AbutmentAngular AbutmentLong Angular AbutmentNarrow Angular AbutmentAngular Abutment
P4-3.75,15P4-3.75,15stP4L-3.75,15P4N-3.75,15P4-5,15
P4-3.75,25P4-3.75,25stP4L-3.75,25P4-5,25
P4-3.75,35
P4-3.75,45

P4 Angular Abutment

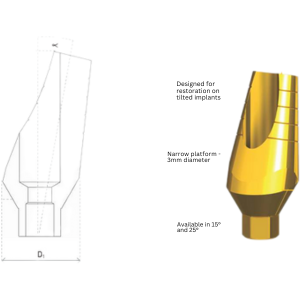

Narrow Platform

P4P4LP4S-15
Angular AbutmentLong Angular AbutmentAnatomic angular abutment 15° with shoulder
P4-3,15P4L-3,15P4S-3,15-1
P4-3,25P4L-3,25P4S-3,15-2
P4S-3,15-3

P4 Angular Abutment

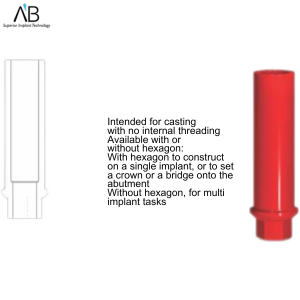

Standard Platform

P2NHP2N
Plastic Sleeve w/fixation Screw - Straight w/hex (for Crown)Plastic Sleeve w/fixation Screw - Rounded w/hex (for Bridge)
PZNH-3.75,15P2N-3.75,15

Plastic Sleeve

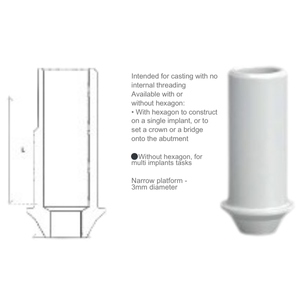

Narrow Platform

P2NP2NH
Plastic Sleeve w/Fixation Narrow Screw - Straight for Bridge)Plastic Sleeve w/Fixation Narrow Screw - Straight w/Hex for Crown)
P2N- 3,15P2NH- 3,15

Plastic Sleeve

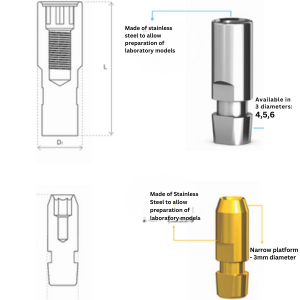

D1-3.75D1-5D1-6D1-3
Implant AnalogImplant AnalogImplant AnalogImplant Analog
D1-3.75D1-5D1-6D1-3

D1 Analog

Anti Rotation Abutment

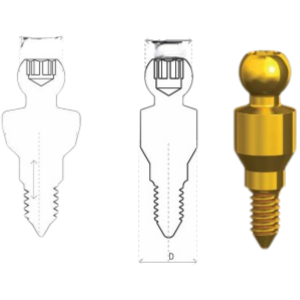

P5P5Related PartsP5 Set
Ball Attachment Abutment(Sold With transparent silicon cap)Ball Attachment Abutment(Sold With transparent silicon cap)Silicon caps are sold in pairs of the same colorIncludes:
P5 Ball Attachment
+P5b Transparent
+p5a Metal Cap
P5-3.75, 1P5-3, 1P5b-1 Grey Hard Silicon CapP5-3.75,1set
P5-3.75, 2P5-3, 2P5b-1 Transparent Medium Silicon CapP5-3.75,2set
P5-3.75, 3P5-3, 3P5b-1 Pink Soft Silicon CapP5-3.75,3set
P5-3.75, 4P5-3, 4P5b-1 Black Silicon Cap for LabP5-3.75,4set
P5-3.75, 5P5-3, 5P5b-1 Metal Cap
P5-3.75, 6P5-3, 6P5b-1 Protective Disk

P5 Ball Attachment

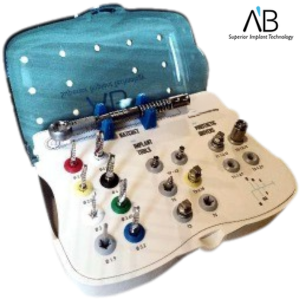

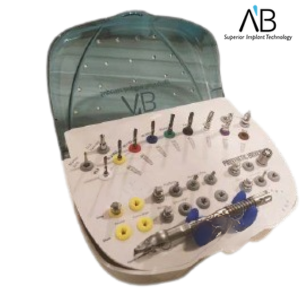

TKM TKMS-T8C-IN COMPACT ORGANIZED KIT

TKM\TKM-CD\TKM-T8C-IN MEDIUM ORGANIZED KIT WITH STRAIGHT DRILLS
